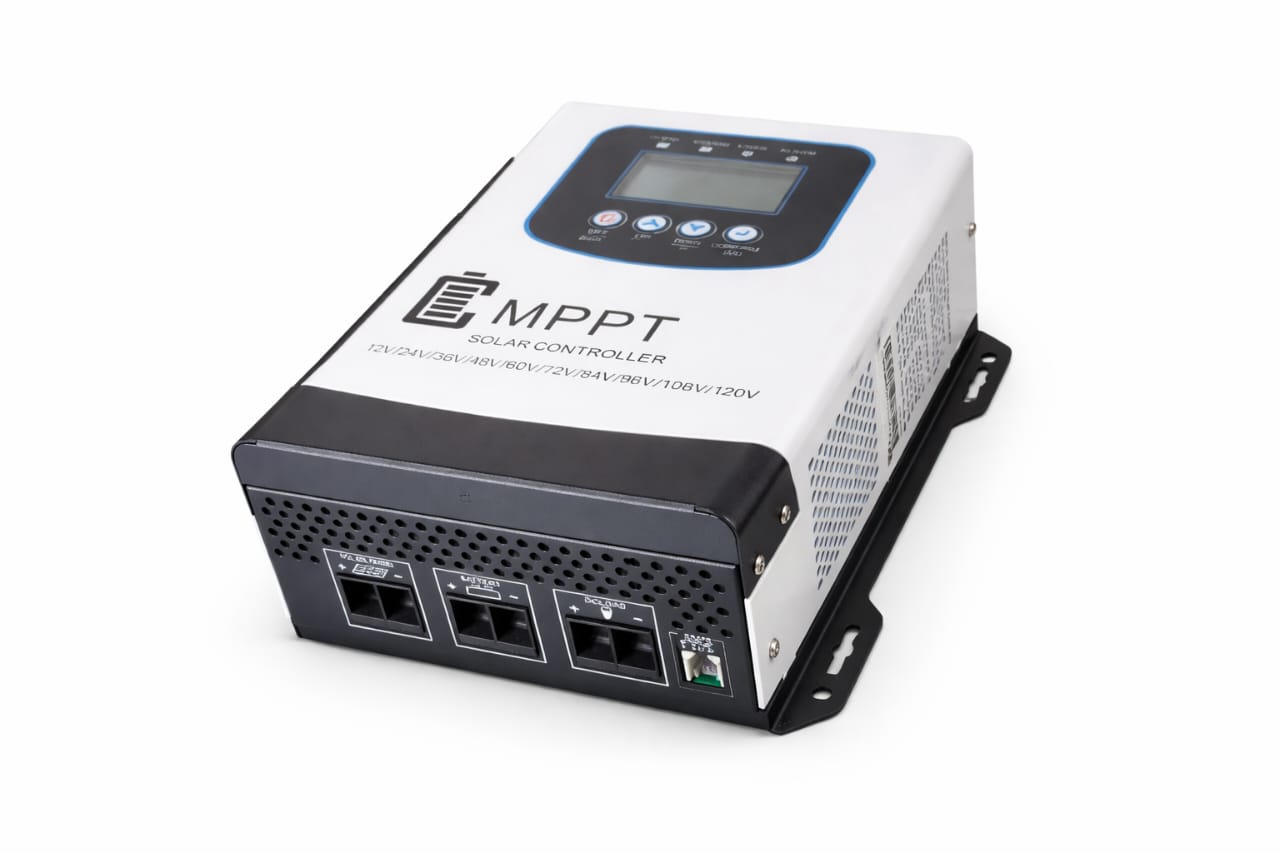

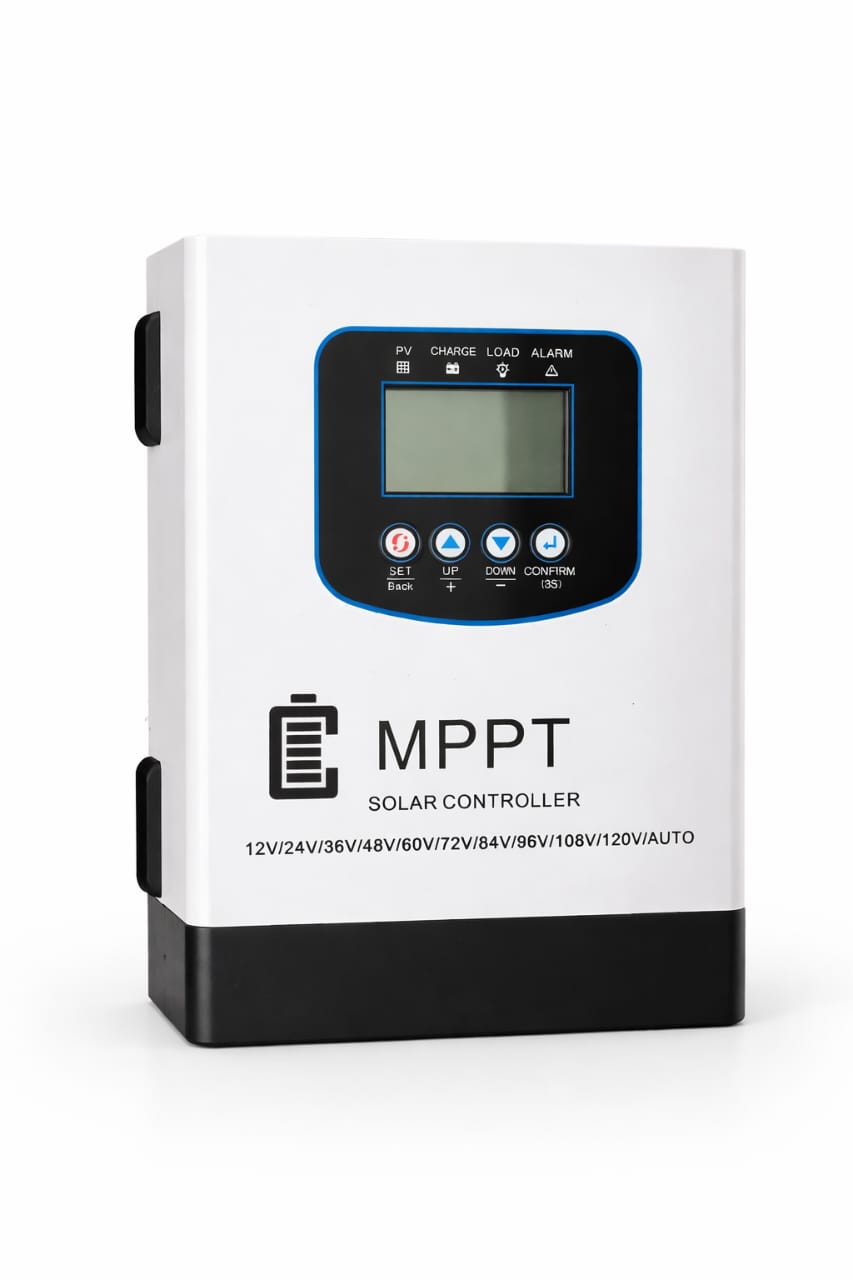

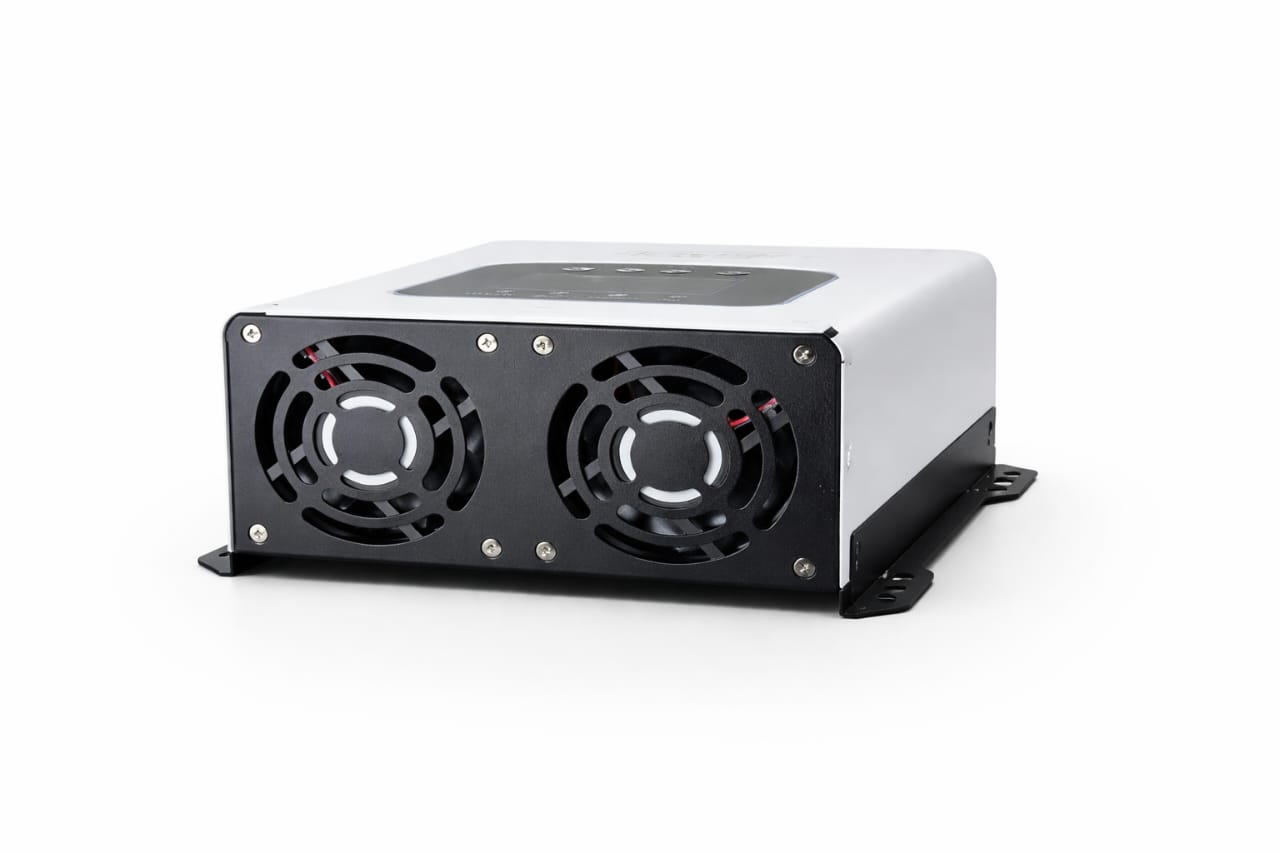

Name of Parameter | Parameter Value | |||
System Voltage | 12V/24V/36V/48V | |||
No-load loss | 0.54W | |||
Battery voltage | 9V~64V | |||
Maximal PV open-circuit voltage | 150V | 240V | ||
Maximal voltage range at
PowerPoint |
Battery voltage +2~120V | Battery voltage +2~180V | ||
Rated charging current | 80A | 100A | 85A | 100A |
Settable charging current | 0-85A | 0-100A | 0-85A | 0-100A |
Power of solar panel (12V) | 1100W | 1320W | 1100W | 1320W |
Power of solar panel (24V) | 2200W | 2640W | 2200W | 2640W |
Power of solar panel (48V) | 4400W | 5280W | 4400W | 5280W |
Charging conversion efficiency | ≤98% | |||
MPPT tracking efficiency | >99% | |||
Temperature compensation
coefficient |
-3mV/℃/2V (default, settable lead-acid); no temperature compensation for a lithium battery. | |||
Communication way | TTL/Isolated RS485; baud rate 9600, digital bit 3, stop bit 1, no check bit | |||
Bluetooth | Built-in Bluetooth 4.0BLE module, achieving mobile phone APP monitoring | |||
Internal temperature protection | When the interior temperature of the controller is higher than
the set value, it shall perform a linear power reduction operation |
|||
External temperature sampling of battery | The temperature is used for battery temperature compensation and battery temperature protection | |||
Programmable relay | DPST 10A/250VACï¼›10A/30VDC | |||
Protection function | Battery overcharging protection, battery over-discharge protection,
PV anti-reverse protection, reverse charge protection at night, interior overtemperature protection of controller and over-current protection in change |
|||
Operation temperature | -35℃ ~ +65℃ | |||
Elevation | ≤3000m | |||
Protection grade | IP32 | |||
Weight | 5.7kg | |||
Product size | Conventional:314*227*121mm
MC4:314*259*121mm |
1. With the PowerCatcher MPPT technology, the controller is able to track the maximum power point of solar panels even in a complex environment. It has a higher response speed and tracking efficiency compared with those controllers with traditional MPPT technology.
2. The maximum power point tracking algorithm can significantly improve the energy utilization efficiency of photovoltaic systems. The charging efficiency is 15% to 20% higher than the conventional PWM method.
3. MPPT Tracking efficiency is up to 99.9%.
4. Advanced digital power technology raises the circuit energy conversion efficiency to 98%.
5. The controller features a limited current charging mode. When the solar panel power exceeds a certain level and the charging current is larger than the rated current, the controller will automatically lower the charging power and bring the charging current to the rated level.
6. Support charging lithium batteries, gel batteries, sealed batteries, and vented batteries, etc.
7. The controller has an overheat protection mechanism. With charging line loss compensation, the voltage of the battery terminal can be accurately controlled.
8. The controller features a limited current charging mode. When the solar panel power exceeds a certain level and the charging current is larger than the rated current, the controller will automatically lower the charging power and bring the charging current to the rated level.
9. The controller has an overheat protection mechanism. When the temperature exceeds the set value, the charging current will decline in linear proportion, and discharging will be shut off so as to curb the temperature rise of the controller and keep the controller from being damaged by overheat.
10. It supports the parallel operation and meets the need for greater charging power.
11. With embedded Bluetooth 4.0BLE module, it can achieve data interaction with APP on a mobile phone.
12. Supports standard Modbus protocol and provides protocol technology support to facilitate secondary development and application by users.
13. Programmable relay output.
